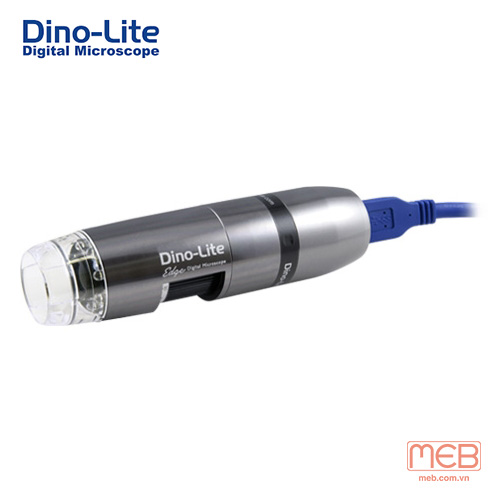

Kính hiển vi điện tử AM73115MTF - 10x~70x, 5 MP (Dino-Lite Edge 3.0)

Mã hàng: AM73115MTF
Thương hiệu: Dino-Lite
Xuất xứ: Đài Loan

Liên Hệ: 0975.745.366 - 0975.745.266

Thông số kỹ thuật
Tổng quan

Tên/Name:	Kính hiển vi điện tử AM73115MTF - 10x~70x, 5 MP (Dino-Lite Edge 3.0)
Mã/Code:	AM73115MTF
Độ phân giải/Resolution:	5MP
Độ phóng đại/Magnification:	10x~70x
Cổng giao tiếp/Interface:	USB 3.0
Bộ cảm biến hình ảnh/Sensor:	Không
Khung hình/Frame Rate:	15fps at 5MP, YUY2 (USB 3.0) 45fps at 1.3MP, YUY2 (USB 3.0) 15fps at 1.3MP, YUY2 (USB 2.0)
Hệ điều hành/Operating system:	Windows 7/8/10/11 macOS 10.14 or later
Lưu định dạng/Format save:	Image: DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM DinoXcope: PNG, JPEG Video: inoCapture2.0: WMV, FLV, SWF DinoXcope: MOV
Đo Lường/Measuring:	Có
Hiệu chuẩn/Calibration:	Có
Đèn Led/LEDs:	8-white
Điều khiển đèn/FLC:	Có
Kính phân cực/Polarizer:	Không
Khoảng cách đo lớn/LWD:	Có
Đọc phóng đại tự động/AMR:	Không
Tăng Chiều sâu,Chiều rộng EDR/EDOF:	Không
Chiếu sáng trục/AXI	Không
Lắp chụp trước kính Detachable Front Cap	Có
Vỏ kim loại/Metallic Housing:	Có
Nút bấm chạm/Microtouch:	Có
Kích thước/Dimension	11.9cm (H) x 3.3cm (D)
Khối lượng/Weight	110g
Xuất xứ/Original	Đài Loan
Nhà sản xuất/Maker	Anmo

Extra-long Working Distance
With Edge optics quality, the ELWD lens reveals minute details with minimum 108mm working distance at maximum magnification of 70X, making it well-suited for observation requiring ample space between microscope and object.

High-Speed transmission
Through the use of USB 3.0 interface, the device is capable to obtain smooth and high-quality image at up to 15 FPS at 2560x1920 or 45 FPS at 1280x960.

High optical resolution
The superior optics adopted in the Edge series reveals the finest details, answering the needs of the most demanding microscopy applications.

5.0 Megapixels
The advanced CMOS image sensor allows to transmit sharp and crisp image with resolution up to 2560x1920 without compression.

Flexible LED Control (FLC)
Tasking with software, the FLC maximizes illumination flexibility by offering independent on/off control to the four LED quadrants in addition to the 6-levels intensity adjustment capability.

Enhanced Flexible LED Control (eFLC)
Improving FLC capabilities, eFLC can adjust the light intensity on two assigned groups of LED quadrants, each with 32-levels light intensity adjustments.

Note: eFLC is available for AM73115MTF(R10) or later.

Scroll Lock
The scroll lock ensures the focus knob staying at the desired focus or magnification position without worry of unintentional movement.

Robust housing
The metal housing made of aluminum alloy offers compelling advantages of protection and endurance.

Interchangeable front caps
The interchangeable front caps are designed to be used with Dino-Lite Edge and Edge^PLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.

	N3C-C / Close Cap This cap protects the lens and LED lights from contamination of dust, debris, or moisture.
	N3C-E / Extended Open Cap (12.5mm length) This 12.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.
	N3C-O / Open Cap (9.5mm length) This 9.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode.

Note:
The included caps may vary per model. Please contact your local distributor or reseller for purchasing additional caps.

Optical Data Table

M	WD	FOV (x)	FOV (y)	DOF
10	503	39.1	31.3	31.49
20	271	19.5	15.6	8.67
30	196	13.0	10.4	4.20
40	159	9.8	7.8	2.56
50	135	7.8	6.3	1.76
60	120	6.5	5.2	1.31
70	108	5.6	4.5	1.03

M = magnification rate WD = working distance (without front cap) FOV = field of view DOF= depth of field Unit = mm
